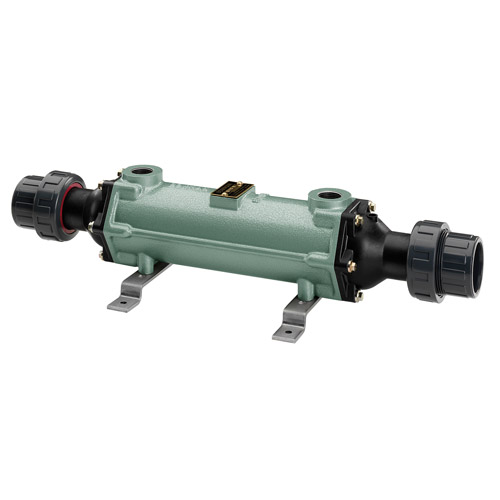

Heat exchanger Bowman for solar panels/heat pump 10 kW copper/nickel

SOLAR PANELS/HEAT PUMP - PRIMARY CIRCUIT 45°C.

Pool capacity boiler: 20 m³.

Boiler flow rate: 1.5 m³.

Heat transfer: 10 kW 34,00 BTU/h.

Pool flow rate: 6,2 m³/h.

Finish: copper/nickel.

There are two series of Bowman heat exchangers for swimming pools, one for use with a boiler and one for use with solar panels or a heat pump.Bowman heat exchangers, which are available worldwide, stand for reliability and durability, and offer the following advantages:

Energy saving:

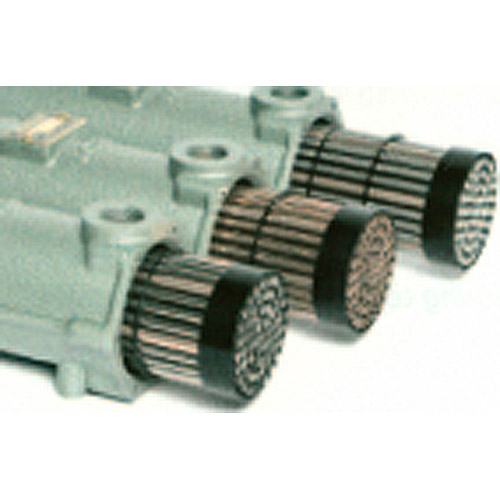

With more heat exchange tubes than most models from other manufacturers, the heat exchanger is much more efficient, allowing the water to be heated up to 3x faster.This in turn reduces energy costs and CO2 emissions.

Corrosion-resistant material:

The heat exchanger is available in titanium or copper nickel versions, allowing it to be used for any type of bath.

Excellent reliability:

Manufactured in England to BS EN ISO 9001-2008 standards, there are several ten thousand units operational, worldwide.

New hot tub model:

The new super compact model 5113-1 delivers up to 25kW of heat exchange! Ideal for hot tubs, spas and small pools up to 50m³.

Option: see "LEA thermostat for Bowman heat exchanger:

LAE thermostat wall-mountable digital thermostat, range -50 to 150°C programmable, 230 VAC, input 5Amp, 240 VAC output.
